Separation vs. Filtration: Understanding different separation technologies
In chemistry and process engineering, the terms “separation” and “filtration” are often used interchangeably. While both refer to essential methods for splitting mixtures, there are important differences between them. “Separation” is an umbrella term for a wide range of techniques used to separate mixtures. “Filtration”, on the other hand, is a specific method that removes solids from liquids or gases by passing them through a filter medium. Separation methods are vital across countless industries and touch every aspect of modern life. That’s why it’s crucial to understand what sets filtration apart from other separation technologies. In this article, we’ll clarify what separation means, explore various separation methods, and highlight the innovative filtration solutions that are shaping our world.
Separation: Key methods and applications
Separation refers to all processes aimed at splitting the components of a mixture. There’s a wide spectrum of separation technologies, each based on different physical, chemical, or mechanical properties. These methods take advantage of differences in boiling point, density, particle size, magnetism, and other factors. Here’s an overview of the most important separation methods, with real-world examples:
- Filtration
- Fibrous filter media (used for air, oil, and fuel filtration by MANN+HUMMEL): Capture particles and droplets as fluids flow through fibrous materials; effective for particles assmall as 0.1 microns.
- Membranes (used in applications like water treatment, food production, and industrial processes): These typically polymer-based membranes separate microorganisms, ultra-fine particles, salts, and molecules – removing contaminants smaller than one micron, all the way down to the atomic scale.
- Magnetic separation: Removes magnetic particles from non-magnetic mixtures using electromagnets or permanent magnets.
- Sedimentation: Relies on gravity to separate mixtures with different densities, such as settling dirt from water.
- Winnowing: Separates lighter, smaller particles from heavier ones using a crossflow of air – think “Separating the wheat from the chaff” in agriculture.
- Sieving: Sorts particles based on size using different mesh screens. Strictly speaking, this is classification, not separation, since it can also be used for particles of a single material.
- Centrifugation: Similar to sedimentation, but uses centrifugal force generated by spinning to speed up the separation
- Absorption: Molecules are taken up into the bulk of a liquid, such as carbon dioxide dissolving in water.
- Adsorption: Molecules adhere to the surface of a solid (adsorbent), for example, using activated carbon to capture solvent vapors.
- Chromatography: Substances migrate at different rates through a medium, allowing precise separation. In pharmaceuticals, it’s used for both analysis and purification of chemicals – producing highly pure active ingredients.
- Distillation: Uses differences in boiling points to separate liquid mixtures. As the mixture is heated, volatile components evaporate first. Classic examples include: separating alcohol from water, or refining crude oil into kerosene, gasoline, and diesel.
- Extraction: Selectively dissolves components from a mixture using a solvent. In food production, it’s how flavors and aromas are extracted from plants, and how caffeine is removed from coffee.
- Crystallization: Forms solids from a solution by exceeding solubility limits – for example producing salt from seawater.
- Rectification: Multi-stage distillation, used for refining crude oil into various fuel and oil fractions.
- Drying: Removes moisture from solids.
The right separation method always depends on the properties of the substances involved as well as the required purity.
Filtration: A fundamental separation process
Filtration is a basic, indispensable separation method found in countless industries and everyday life. From treating water to purifying air in vehicles, filtration is everywhere and plays a critical role.

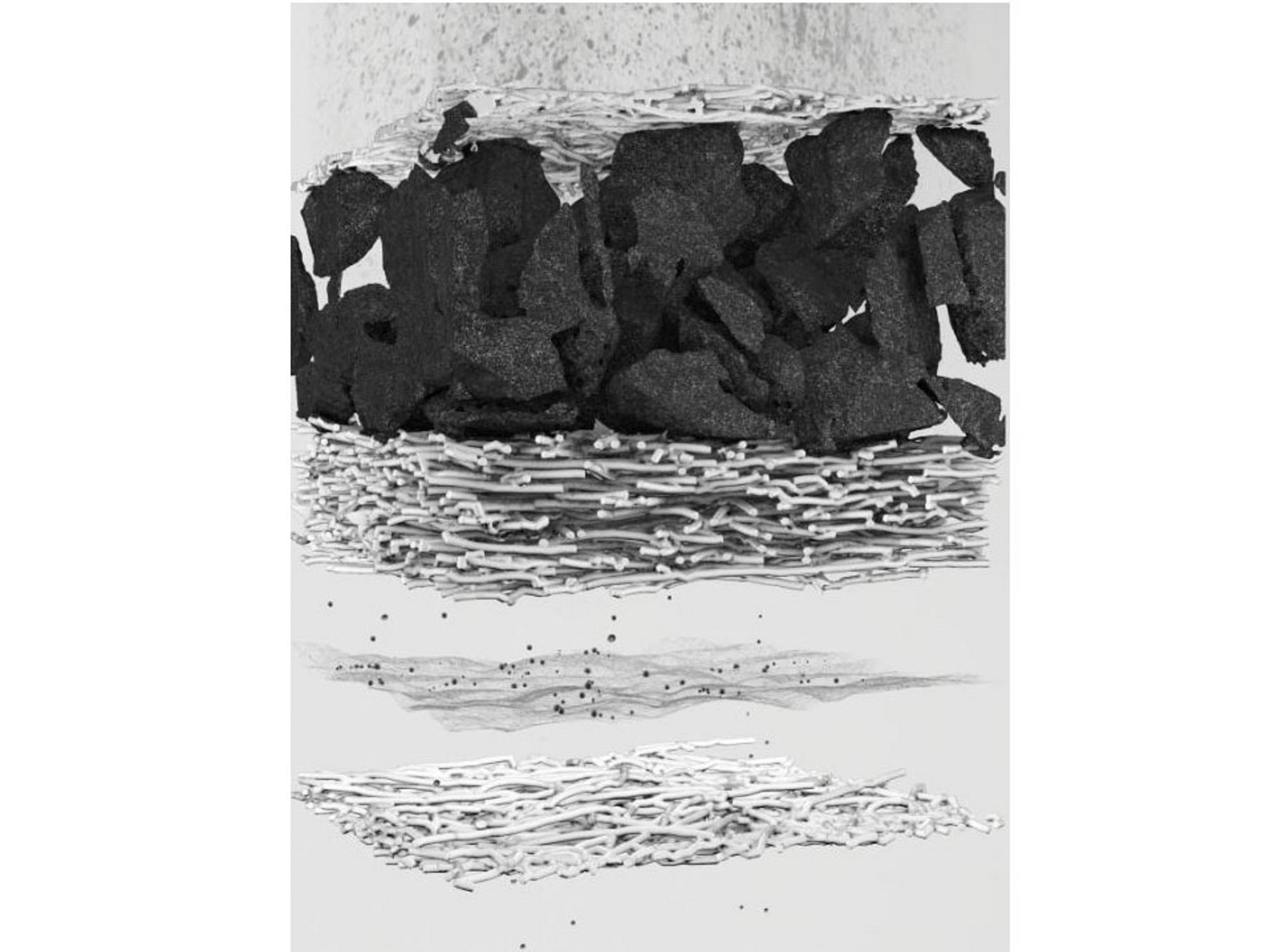

How filtration works
Filtration removes solid particles, droplets, or molecules from liquids or gases by passing them through a porous filter medium. Fibers within the filter material trap particles carried by fluids such as air, oil, or fuel. Membranes, with their precisely defined pores, can separate particles and molecules with even greater accuracy than traditional fibrous filters.
- Adhesion: Particles stick to the surface of filter fibers.
- Sieving: Particles are blocked by spaces between fibers (working much like a sieve). Particles smaller than the spaces are able to pass through.
- Membranes: Can separate even the tiniest particles or dissolved substances thanks to their minuscule, uniform pores (polymer membranes are particularly effective at this).
- Adsorption: Special filter materials (adsorbents), often created using activated carbon, capture gases, pollutants, and odors by binding them to their surface.
MANN+HUMMEL, for example, offers highly effective adsorption filters that reliably remove volatile organic compounds (VOCs), toxins, and odors – which are used in waste management, food production, healthcare, and building ventilation. They’re especially well-suited for applications demanding top air quality and long-term corrosion protection, or for controlling hazardous emissions. Filtration efficiency depends on factors such as particle size, flow speed, and filter material properties.
Filter types and materials
- Cellulose fibers: Natural, plant-derived fibers that have been used for decades; affordable and sustainable, but flammable and absorb water – meaning there are both pros and cons when using them.
- Synthetic fibers: Made from polymers, these are chemically stable, non-brittle, and resistant to water.
- Glass fibers: Increasingly popular when needing to capture ultra-fine particles; highly resistant to chemicals, both brittle and non-flammable.
The key rule: the finer the fibers, the greater the potential filtration efficiency.
Membranes – particularly those made from polymers – play a vital role in filtration. MANN+HUMMEL membranes enable highly precise filtration for water, food, and industrial processes. Made from polymers with tightly controlled pore sizes, they separate even the tiniest particles, salts, and molecules – right down to submicron or atomic dimensions. This ensures only the desired substances pass through, guaranteeing product safety, resource efficiency, and top-quality results for high-performance, sustainable filtration.
What sets different filters apart?
A filter’s performance is determined by up to 20 different, sometimes competing, factors. The most important include:
- Differential pressure: The pressure drop across the filter.
- Particle holding capacity: The amount of contaminants a filter can capture before reaching a set pressure limit.
- Separation efficiency: How well the filter removes particles.
Optimizing these and other factors is key to delivering high-quality, application-specific filtration solutions.
How MANN+HUMMEL is revolutionizing filtration: Innovative separation technologies
While “separation” describes all possible methods for splitting mixtures – serving scientific, industrial, and health-related purposes – filtration is one specific, crucial separation technique. With over 85 years of experience and a global presence in more than 80 locations, MANN+HUMMEL is a world leader in filtration and adsorption. Beyond fibrous filter media, MANN+HUMMEL’s Life Science and Environmental divisions also use membrane filters – made from polymers or, less commonly, ceramics. These membranes feature pores up to 1,000 times smaller than those in fibrous filters, making them perfect for removing ultra-fine contaminants, from molecular pollutants in water, to bacteria in drinking water, to desalinating seawater, or isolating proteins from milk.
MANN+HUMMEL is constantly advancing new filtration and separation technologies. One example: the development of non-porous membranes for desalinating seawater via reverse osmosis. We’re also creating membranes with tailored electrical properties, used in large-scale battery systems or in humidifiers for fuel cell technology – where they selectively transport specific ions or water molecules at the atomic level.
